Behringer P16-D

The Behringer POWERPLAY P16-D is a 16-channel ULTRANET distributor that grows a personal monitoring rig from one performer to a full band.

A single ULTRANET input feeds eight RJ-45 outputs, carrying all 16 channels of 24-bit audio and supplying bus power to every connected P16-M or P16-HQ personal mixer over the same CAT5 cable.

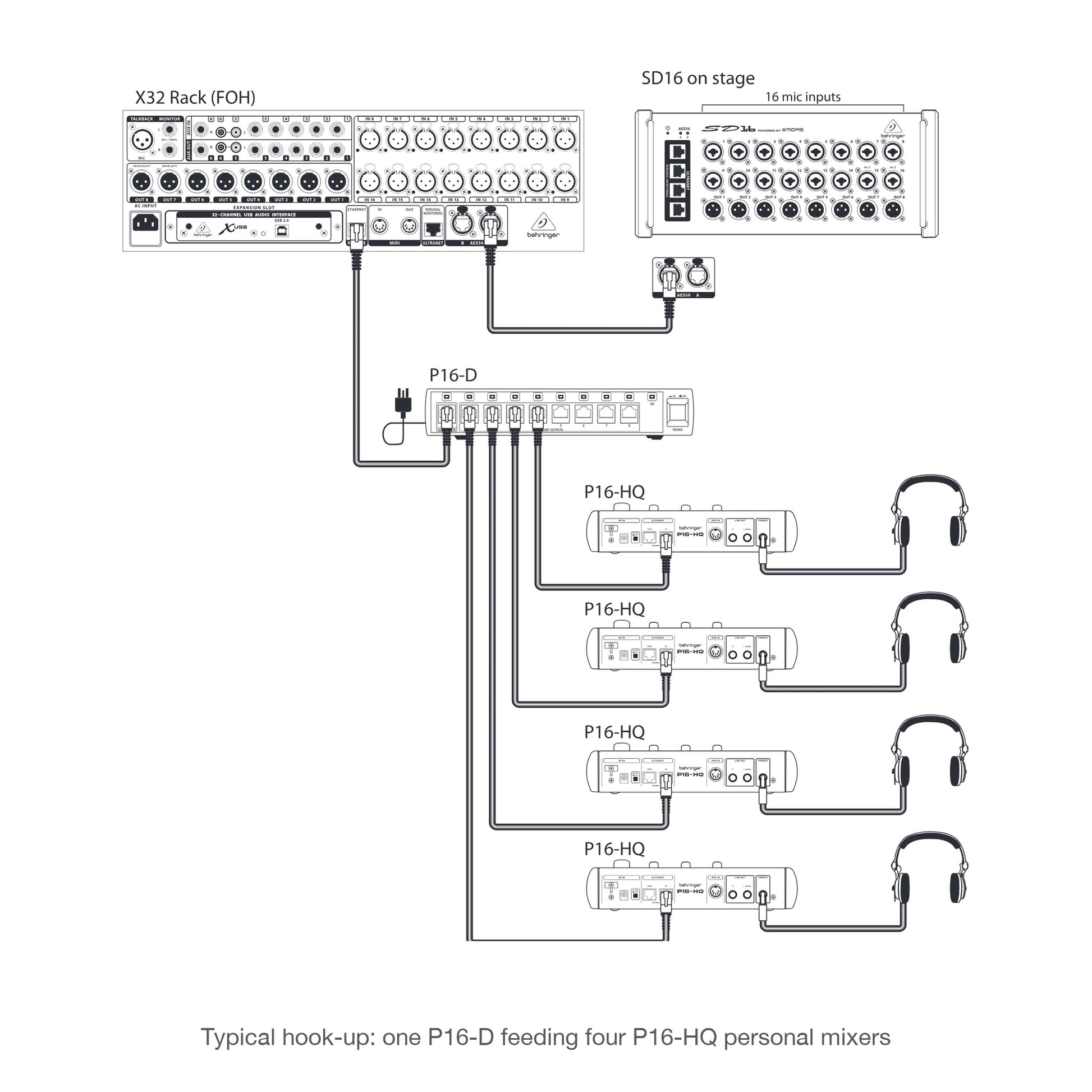

It connects to a Behringer X32, an S16 digital snake or a P16-I input module, and up to six P16-D units can be combined to drive as many as 48 personal mixers. Status LEDs on the input and all eight outputs make faults quick to spot during setup.

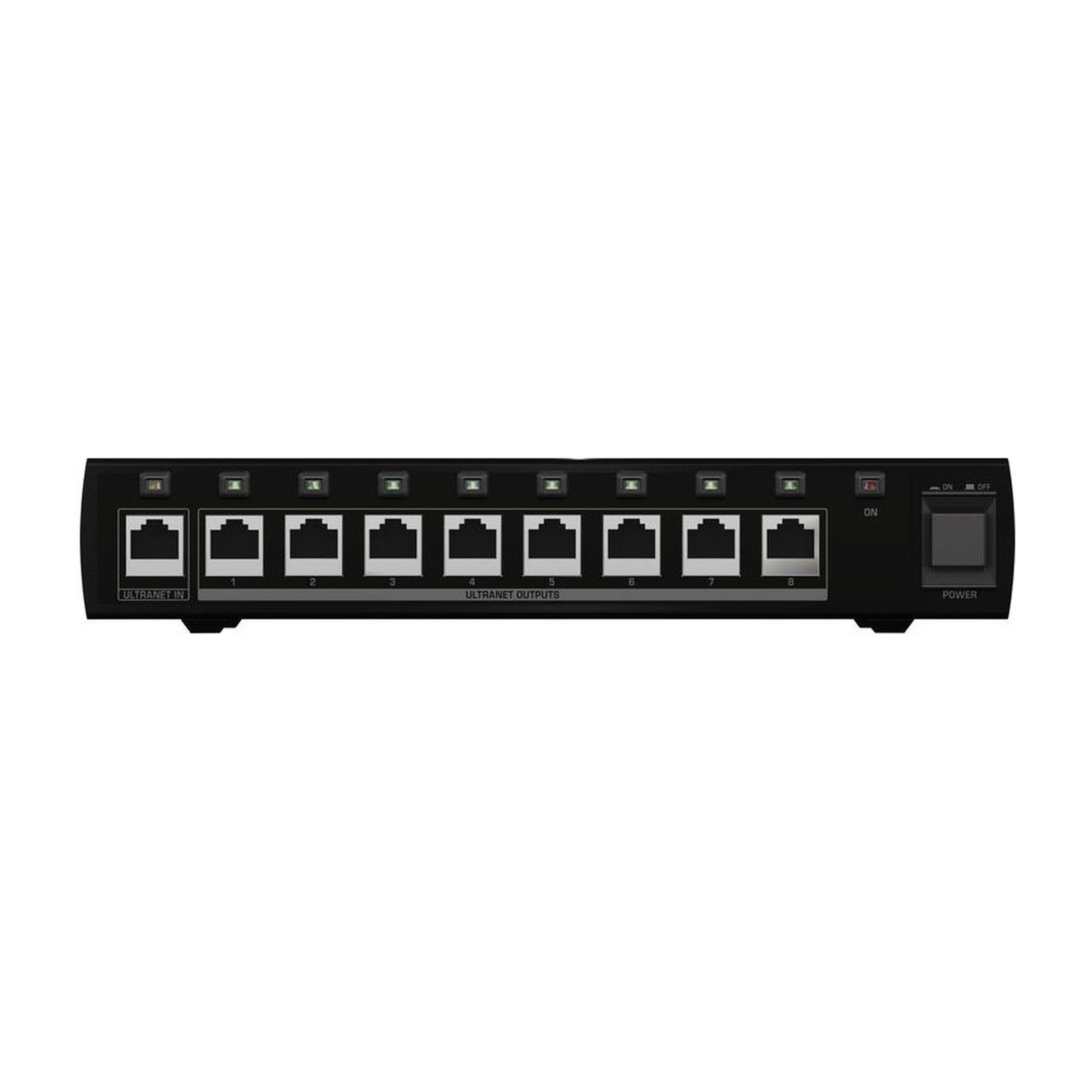

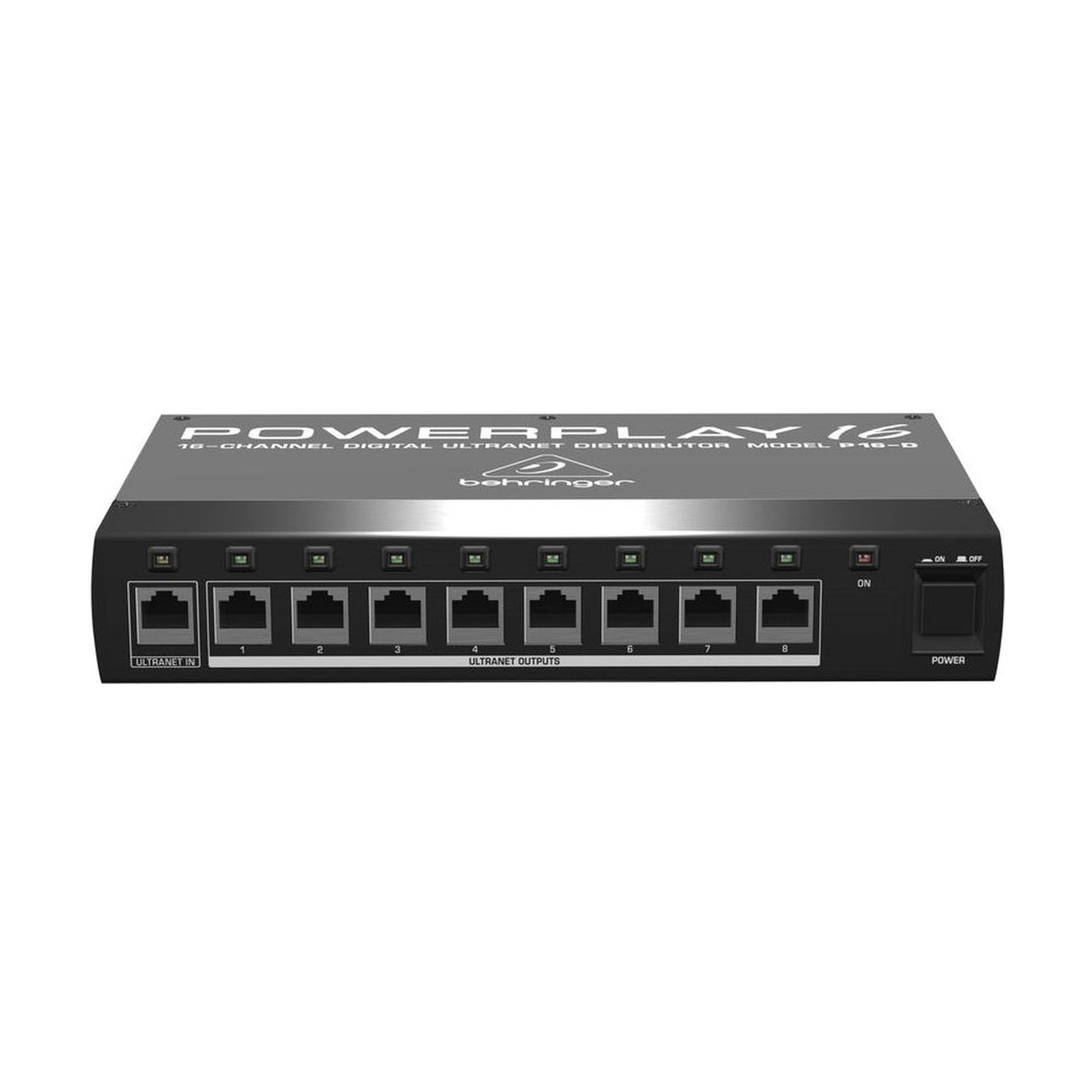

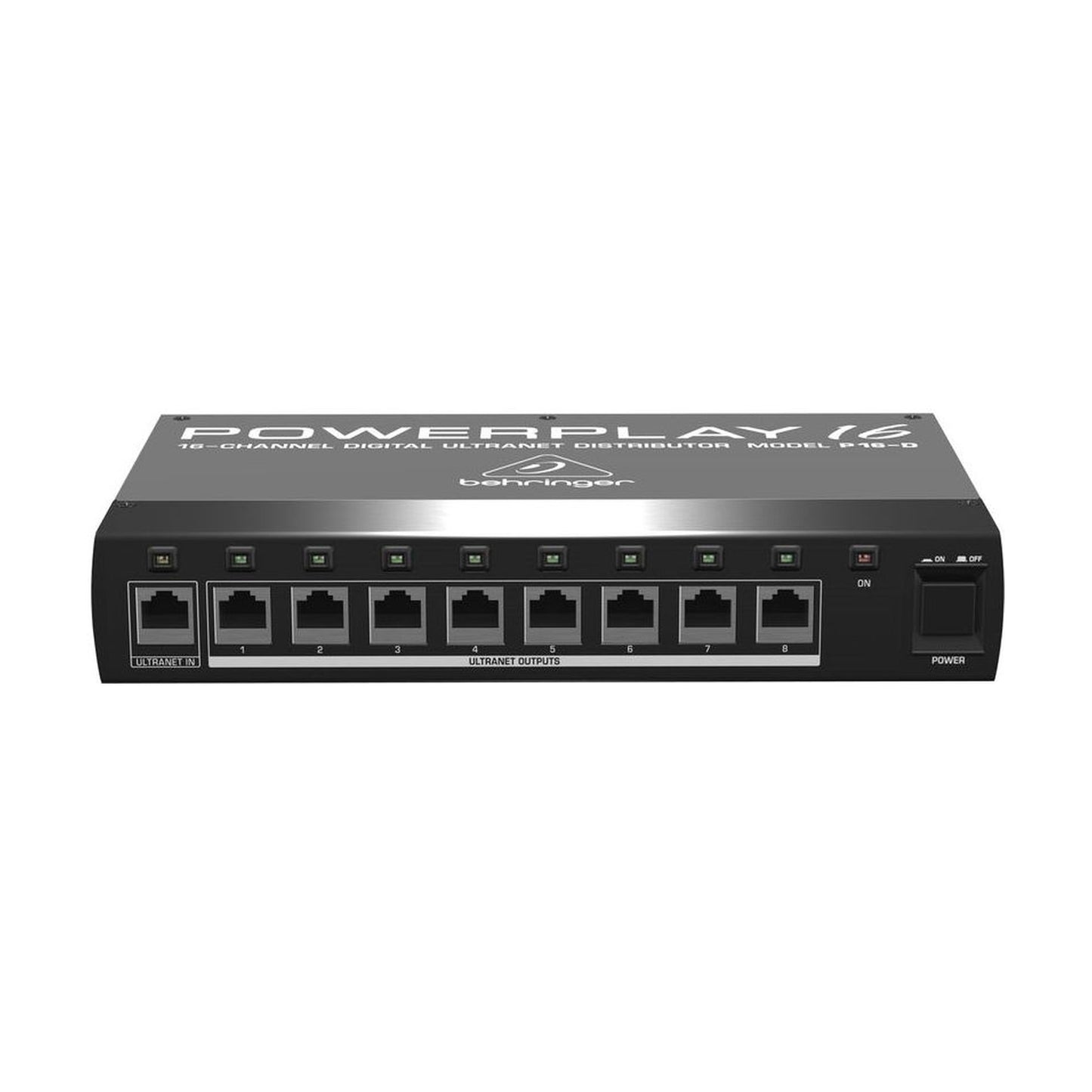

• 1 ULTRANET input feeding 8 ULTRANET (RJ-45) outputs
• Distributes 16 channels of 24-bit audio plus bus power
• Works with the X32, S16, P16-I, P16-M and P16-HQ
• Combine up to six units for up to 48 personal mixers

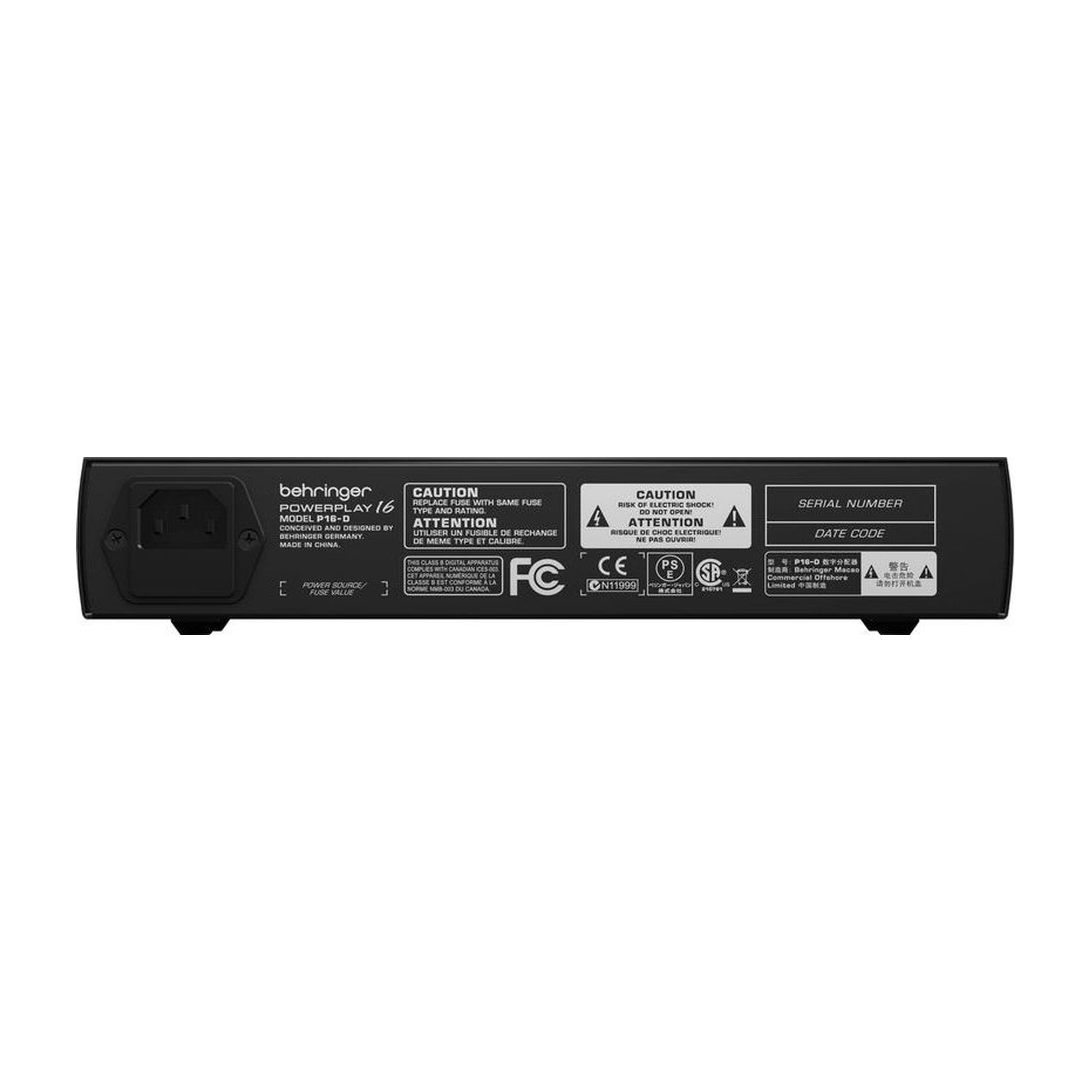

• Internal auto-range power supply, 100 to 240 V
• Status LEDs on the input and each output
• Rack-mountable steel chassis
